CzUIBase Class Reference

Base class of all UI components. More...

#include <CzUIBase.h>

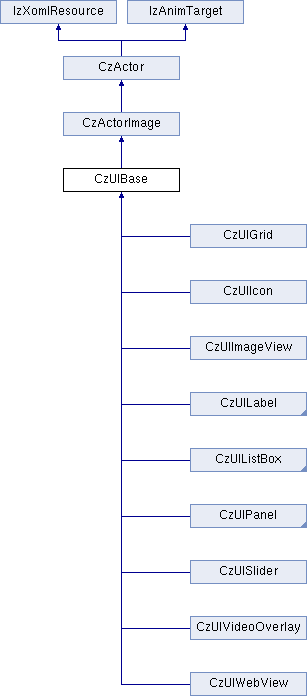

Inheritance diagram for CzUIBase:

List of all members.

Public Types
enum	eSelectType { SelectType_Normal, SelectType_Toggle, SelectType_Sticky }
	Values that represent different types of selection modes. More...
enum	eAxis { Axis_None, Axis_X, Axis_Y, Axis_XY }
	Values that represent horizonal, vertical and both axis. More...
Public Member Functions
void	setVisible (bool visible, bool force_set=false)
	Makes an actor visible.
void	setBackgroundBrush (IzBrush *brush)
	Sets background brush of the actor.
IzBrush *	getBackgroundBrush () const
void	setBackgroundColour (const CzColour &colour)
	Sets background colour of the actor.
CzColour	getBackgroundColour () const
void	setSelectedBackgroundBrush (IzBrush *brush)
	Sets selected background brush of the actor.
IzBrush *	getSelectedBackgroundBrush () const
void	setSelectedBackgroundColour (const CzColour &colour)
	Sets selected background colour of the actor.
CzColour	getSelectedBackgroundColour () const
void	setDisabledBackgroundBrush (IzBrush *brush)
	Sets disabled background brush of the actor.
IzBrush *	getDisabledBackgroundBrush () const
void	setDisabledBackgroundColour (const CzColour &colour)
	Sets disabled background colour of the actor.
CzColour	getDisabledBackgroundColour () const
void	setSelectType (eSelectType type)
eSelectType	getSelectType () const
void	setSelected (bool selected, bool force_select=false)
	Sets actors selected state.
bool	isSelected () const
virtual void	setEnabled (bool enabled)
	Enables or disables the actor.
bool	isEnabled () const
bool	setProperty (unsigned int property_name, const CzXomlProperty &data, bool delta)
	Sets the named property of the actor.
bool	setProperty (unsigned int property_name, const CzString &data, bool delta)
	Sets the named property of the actor.
bool	getProperty (unsigned int property_name, CzXomlProperty &prop)
	Gets the named property of the actor.
void	setLayoutDirty (bool dirty)
	Sets layout as dirty.
bool	isLayoutDirty () const
void	setClippingMargin (int x, int y, int w, int h)
CzIRect	getClippingMargin ()
void	setScrollPos (float x, float y)
	Sets scroll position.
CzVec2	getScrollPos () const
CzVec2	getPreviousScrollPos () const
void	setScrollVelocity (float x, float y)
CzVec2	getScrollVelocity () const
void	setScrollRange (int x, int y, int w, int h)
CzIRect	getScrollRange () const
void	setToggledOn (bool toggled_on)
	Sets actores toggled state.
bool	isToggledOn () const
void	setShowTimeline (CzAnimTimeline *timeline)
	Sets show timeline deleting any previously assigned none managed show timeline.
CzAnimTimeline *	getShowTimeline () const
void	setHideTimeline (CzAnimTimeline *timeline)
	Sets hide timeline deleting any previously assigned none managed hide timeline.
CzAnimTimeline *	getHideTimeline () const
void	setNeedsResize (bool resize)
bool	getNeedsResize () const
void	setSizeToContentAxis (eAxis axis)
eAxis	getSizeToContentAxis () const
void	NotifyParentsResize ()
	Notifies the parent to resize its layout.
void	setColourOffset (const CzIRect &offset)
void	resetColourOffset ()
CzIRect	getColourOffset () const
void	setShowTimeline (const char *timeline_name)
void	setHideTimeline (const char *timeline_name)
	Sets hide timeline to the named timeline.
void	setEnableSpring (bool enable)
bool	getEnableSpring () const
	CzUIBase ()
virtual	~CzUIBase ()
bool	Init (IzBrush *brush, int width, int height)
	Initialises this UI actor.
bool	Update (float dt)
	Updates this actors logic.
virtual void	ResizeToContent ()
	Resizes the actor to fit its content.
void	NotifyTapped (int index, int x, int y, bool allow_bubble)
	OnTapped event handler.
void	NotifyBeginTouch (int index, int x, int y, bool allow_bubble)
	OnBeginTouch event handler.
void	NotifyEndTouch (int index, int x, int y, bool allow_bubble)
	OnEndTouch event handler.
virtual void	NotifyToggledOn ()
	Handles the toggled on event.
virtual void	NotifyToggledOff ()
	Handles the toggled off event.
virtual void	NotifyBackKey ()
	Handles the back key press evente.
virtual void	NotifyMenuKey ()
	Handles the menu key press evente.
void	NotifyOrientationChange (CzScene::eOrientation old_orientation, CzScene::eOrientation new_orientation)
	Handles the orientation change event.
int	LoadFromXoml (IzXomlResource *parent, bool load_children, CzXmlNode *node)
	Creates an instance of this class from XML.
bool	UpdateFromAnimation (CzAnimInstance *animation)
	Updates actor property from supplied animation.
Static Public Member Functions
static void	InitPresetAnimations ()
	Initialises the preset animations.
static void	ReleasePresetAnimations ()
	Initialises the preset animations.
static void	UpdatePresetAnimations ()
	Updates the preset animations.
static CzAnim *	FindPresetAnimation (unsigned int name_hash)
	Searches for the first preset animation.
static void	InitClass ()
	Initialises the class.
static void	ReleaseClass ()
static bool	_setSize (IzXomlResource *target, const CzXomlProperty &prop, bool add)
static CzXomlProperty	_getSize (IzXomlResource *target)
static bool	_setBackground (IzXomlResource *target, const CzXomlProperty &prop, bool add)
static CzXomlProperty	_getBackground (IzXomlResource *target)
static bool	_setSelectedBackground (IzXomlResource *target, const CzXomlProperty &prop, bool add)
static CzXomlProperty	_getSelectedBackground (IzXomlResource *target)
static bool	_setDisabledBackground (IzXomlResource *target, const CzXomlProperty &prop, bool add)
static CzXomlProperty	_getDisabledBackground (IzXomlResource *target)
static bool	_setBackgroundColour (IzXomlResource *target, const CzXomlProperty &prop, bool add)
static CzXomlProperty	_getBackgroundColour (IzXomlResource *target)
static bool	_setSelectedColour (IzXomlResource *target, const CzXomlProperty &prop, bool add)
static CzXomlProperty	_getSelectedColour (IzXomlResource *target)
static bool	_setDisabledColour (IzXomlResource *target, const CzXomlProperty &prop, bool add)
static CzXomlProperty	_getDisabledColour (IzXomlResource *target)
static bool	_setEnabled (IzXomlResource *target, const CzXomlProperty &prop, bool add)
static CzXomlProperty	_getEnabled (IzXomlResource *target)
static bool	_setSelected (IzXomlResource *target, const CzXomlProperty &prop, bool add)
static CzXomlProperty	_getSelected (IzXomlResource *target)
static bool	_setScrollPos (IzXomlResource *target, const CzXomlProperty &prop, bool add)
static CzXomlProperty	_getScrollPos (IzXomlResource *target)
static bool	_setSelectType (IzXomlResource *target, const CzXomlProperty &prop, bool add)
static CzXomlProperty	_getSelectType (IzXomlResource *target)
static bool	_setSpring (IzXomlResource *target, const CzXomlProperty &prop, bool add)
static CzXomlProperty	_getSpring (IzXomlResource *target)
static bool	_setOnToggledOn (IzXomlResource *target, const CzXomlProperty &prop, bool add)
static bool	_setOnToggledOff (IzXomlResource *target, const CzXomlProperty &prop, bool add)
static bool	_setOnBackKey (IzXomlResource *target, const CzXomlProperty &prop, bool add)
static bool	_setOnMenuKey (IzXomlResource *target, const CzXomlProperty &prop, bool add)
static bool	_setClipMargin (IzXomlResource *target, const CzXomlProperty &prop, bool add)
static CzXomlProperty	_getClipMargin (IzXomlResource *target)
static bool	_setScrollRange (IzXomlResource *target, const CzXomlProperty &prop, bool add)
static CzXomlProperty	_getScrollRange (IzXomlResource *target)
static bool	_setShowTimeline (IzXomlResource *target, const CzXomlProperty &prop, bool add)
static CzXomlProperty	_getShowTimeline (IzXomlResource *target)
static bool	_setHideTimeline (IzXomlResource *target, const CzXomlProperty &prop, bool add)
static CzXomlProperty	_getHideTimeline (IzXomlResource *target)
static bool	_setSizeToContentAxis (IzXomlResource *target, const CzXomlProperty &prop, bool add)
static CzXomlProperty	_getSizeToContentAxis (IzXomlResource *target)
static bool	_setKeyFocus (IzXomlResource *target, const CzXomlProperty &prop, bool add)
static CzXomlProperty	_getKeyFocus (IzXomlResource *target)
static bool	_setToggledOn (IzXomlResource *target, const CzXomlProperty &prop, bool add)
static CzXomlProperty	_getToggledOn (IzXomlResource *target)
static bool	_setColourOffset (IzXomlResource *target, const CzXomlProperty &prop, bool add)
static CzXomlProperty	_getColourOffset (IzXomlResource *target)
Static Public Attributes
static CzList< CzAnim * >	PresetAnimations
Protected Member Functions
bool	UpdateBinding (unsigned int property_name, CzXomlVariable *var)
	Updates an actor property from the supplied XOML variable.
virtual bool	UpdateLayout ()
	Updates the actors layout.
bool	ScrollRangeCheck ()
	Prevents scroll position from giong out of bounds.
Protected Attributes
bool	PrevSelected
	Previous Selected status.
bool	ToggledOn
	ToggledOn state.
bool	Selected
	Selected status.
IzBrush *	BackgroundBrush
	Default none selected brush.
CzColour	BackgroundColour
	Default none selected colour.
IzBrush *	SelectedBackgroundBrush
	Selected brush.
CzColour	SelectedBackgroundColour
	Selected colour.
IzBrush *	DisabledBackgroundBrush
	Disabled brush.
CzColour	DisabledBackgroundColour
	Disabled colour.
bool	Enabled
	Enabled state.
bool	LayoutDirty
	When true the layout of this element and any children is re-calculated.
eSelectType	SelectType
	Selection method used for this UI element.
CzIRect	OriginalClippingMargin
	Original margin that is used to adjust the clipping rectangle.
CzIRect	ClippingMargin
	Margin that is used to adjust the clipping rectangle.
CzVec2	PreviousScrollPos
	Previous scroll position.
CzVec2	ScrollPos
	Current scroll position.
CzVec2	ScrollVelocity
	Current scroll velocity.
CzIRect	ScrollRange
	X and Y ranges of scroll.
bool	EnableSpring
	Enables drag release spring.
eAxis	SizeToContentAxis
	Determines if and how an element should size to its content.
CzAnimTimeline *	ShowTimeline
	Timeline to play when this UI element is made visible.
CzAnimTimeline *	HideTimeline
	Timeline to play when this UI element is made invisible.
bool	NeedsResize
	Set to true when child actors sizes have changed.
CzIRect	ColourOffset
	Amount to offset the current colour of the actor.
bool	Tapped
CzVec2	InitialScrollPos
Static Protected Attributes
static CzXomlClassDef *	UIBaseClassDef = NULL

---

Detailed Description

Base class of all UI components.

CzUIBase is the basic class that all UI actors are derived from. CzUIBase appends additional functionality to the normal image actor such as:

• Selected, normal and disabled states
• Individual brushes amd colours for each of the 3 states
• Toggle state
• Hide and show timelines
• Automatic re-sizing to contents
• Content scrolling
• Content clipping
• Colour offsetting

All new user interface actors should be derived from this class or a derivative of this class.

The following UI classes are derived from this base class:

• CzUIIcon - An icon / image based button
• CzUILabel - A text label that can display text and an image based background
• CzUIGrid - A grid container that organises content in a columns and rows. Supports data binding
• CzUIImageView - An image container with support for pinch zoom / pan
• CzUIListBox - A list box container that stacks selectable content either vertically or horizontally that can be scrolled. Supports data binding
• CzUICanvas - A container that organises docked and undocked content onto a 2D canvas that can be scrolled
• CzUIStackPanel - A container that stacks content either vertically or horizontally
• CzUIWrapPanel - A container that stacks content either vertically or horizontally, wrapping over hanging content to thenext row or column
• CzUISlider - Enables the user to select a value by sliding a thumb either up / down or left / right
• CzUITabBar - Enables navigation of a number of different views (container UI components such as the Canvas).
• CzUITextBox - A text entry box with a background
• CzUITextView - A text based container with support for pinch zoom / pan
• CzUIVideoOverlay - Displays video overlays
• CzUIWebView - Displays web content

---

Member Enumeration Documentation

enum CzUIBase::eAxis

Values that represent horizonal, vertical and both axis.

Enumerator:

Axis_None	Affects no axis.
Axis_X	Affects x axis.
Axis_Y	Affects y axis.
Axis_XY	Affects both x and y axis.

enum CzUIBase::eSelectType

Values that represent different types of selection modes.

Enumerator:

SelectType_Normal	Normal selection mode, the actor will remasin selected whilst it has touch focus.
SelectType_Toggle	Toggle selection mode, the actors sekected state will toggle on and off each time it is selected.
SelectType_Sticky	Sticky selection mode, the actors sekected state will remain selected once selected.

---

Constructor & Destructor Documentation

CzUIBase::CzUIBase

(

)

CzUIBase::~CzUIBase

(

)

[virtual]

---

Member Function Documentation

CzXomlProperty CzUIBase::_getBackground

(

IzXomlResource *

target

)

[static]

CzXomlProperty CzUIBase::_getBackgroundColour

(

IzXomlResource *

target

)

[static]

CzXomlProperty CzUIBase::_getClipMargin

(

IzXomlResource *

target

)

[static]

CzXomlProperty CzUIBase::_getColourOffset

(

IzXomlResource *

target

)

[static]

CzXomlProperty CzUIBase::_getDisabledBackground

(

IzXomlResource *

target

)

[static]

CzXomlProperty CzUIBase::_getDisabledColour

(

IzXomlResource *

target

)

[static]

CzXomlProperty CzUIBase::_getEnabled

(

IzXomlResource *

target

)

[static]

CzXomlProperty CzUIBase::_getHideTimeline

(

IzXomlResource *

target

)

[static]

CzXomlProperty CzUIBase::_getKeyFocus

(

IzXomlResource *

target

)

[static]

CzXomlProperty CzUIBase::_getScrollPos

(

IzXomlResource *

target

)

[static]

CzXomlProperty CzUIBase::_getScrollRange

(

IzXomlResource *

target

)

[static]

CzXomlProperty CzUIBase::_getSelected

(

IzXomlResource *

target

)

[static]

CzXomlProperty CzUIBase::_getSelectedBackground

(

IzXomlResource *

target

)

[static]

CzXomlProperty CzUIBase::_getSelectedColour

(

IzXomlResource *

target

)

[static]

CzXomlProperty CzUIBase::_getSelectType

(

IzXomlResource *

target

)

[static]

CzXomlProperty CzUIBase::_getShowTimeline

(

IzXomlResource *

target

)

[static]

static CzXomlProperty CzUIBase::_getSize

(

IzXomlResource *

target

)

[static]

Reimplemented from CzActorImage.

CzXomlProperty CzUIBase::_getSizeToContentAxis

(

IzXomlResource *

target

)

[static]

CzXomlProperty CzUIBase::_getSpring

(

IzXomlResource *

target

)

[static]

CzXomlProperty CzUIBase::_getToggledOn

(

IzXomlResource *

target

)

[static]

bool CzUIBase::_setBackground	(	IzXomlResource *	target,
		const CzXomlProperty &	prop,
		bool	add
	)		[static]

bool CzUIBase::_setBackgroundColour	(	IzXomlResource *	target,
		const CzXomlProperty &	prop,
		bool	add
	)		[static]

bool CzUIBase::_setClipMargin	(	IzXomlResource *	target,
		const CzXomlProperty &	prop,
		bool	add
	)		[static]

bool CzUIBase::_setColourOffset	(	IzXomlResource *	target,
		const CzXomlProperty &	prop,
		bool	add
	)		[static]

bool CzUIBase::_setDisabledBackground	(	IzXomlResource *	target,
		const CzXomlProperty &	prop,
		bool	add
	)		[static]

bool CzUIBase::_setDisabledColour	(	IzXomlResource *	target,
		const CzXomlProperty &	prop,
		bool	add
	)		[static]

bool CzUIBase::_setEnabled	(	IzXomlResource *	target,
		const CzXomlProperty &	prop,
		bool	add
	)		[static]

bool CzUIBase::_setHideTimeline	(	IzXomlResource *	target,
		const CzXomlProperty &	prop,
		bool	add
	)		[static]

bool CzUIBase::_setKeyFocus	(	IzXomlResource *	target,
		const CzXomlProperty &	prop,
		bool	add
	)		[static]

bool CzUIBase::_setOnBackKey	(	IzXomlResource *	target,
		const CzXomlProperty &	prop,
		bool	add
	)		[static]

bool CzUIBase::_setOnMenuKey	(	IzXomlResource *	target,
		const CzXomlProperty &	prop,
		bool	add
	)		[static]

bool CzUIBase::_setOnToggledOff	(	IzXomlResource *	target,
		const CzXomlProperty &	prop,
		bool	add
	)		[static]

bool CzUIBase::_setOnToggledOn	(	IzXomlResource *	target,
		const CzXomlProperty &	prop,
		bool	add
	)		[static]

bool CzUIBase::_setScrollPos	(	IzXomlResource *	target,
		const CzXomlProperty &	prop,
		bool	add
	)		[static]

bool CzUIBase::_setScrollRange	(	IzXomlResource *	target,
		const CzXomlProperty &	prop,
		bool	add
	)		[static]

bool CzUIBase::_setSelected	(	IzXomlResource *	target,
		const CzXomlProperty &	prop,
		bool	add
	)		[static]

bool CzUIBase::_setSelectedBackground	(	IzXomlResource *	target,
		const CzXomlProperty &	prop,
		bool	add
	)		[static]

bool CzUIBase::_setSelectedColour	(	IzXomlResource *	target,
		const CzXomlProperty &	prop,
		bool	add
	)		[static]

bool CzUIBase::_setSelectType	(	IzXomlResource *	target,
		const CzXomlProperty &	prop,
		bool	add
	)		[static]

bool CzUIBase::_setShowTimeline	(	IzXomlResource *	target,
		const CzXomlProperty &	prop,
		bool	add
	)		[static]

static bool CzUIBase::_setSize	(	IzXomlResource *	target,
		const CzXomlProperty &	prop,
		bool	add
	)		[static]

Reimplemented from CzActorImage.

bool CzUIBase::_setSizeToContentAxis	(	IzXomlResource *	target,
		const CzXomlProperty &	prop,
		bool	add
	)		[static]

bool CzUIBase::_setSpring	(	IzXomlResource *	target,
		const CzXomlProperty &	prop,
		bool	add
	)		[static]

bool CzUIBase::_setToggledOn	(	IzXomlResource *	target,
		const CzXomlProperty &	prop,
		bool	add
	)		[static]

CzAnim * CzUIBase::FindPresetAnimation

(

unsigned int

name_hash

)

[static]

Searches for the first preset animation.

Parameters:

name_hash

The animation name as a string hash.

Returns:

null if it fails, else the found preset animation.

IzBrush* CzUIBase::getBackgroundBrush

(

)

const [inline]

CzColour CzUIBase::getBackgroundColour

(

)

const [inline]

CzIRect CzUIBase::getClippingMargin

(

)

[inline]

CzIRect CzUIBase::getColourOffset

(

)

const [inline]

IzBrush* CzUIBase::getDisabledBackgroundBrush

(

)

const [inline]

CzColour CzUIBase::getDisabledBackgroundColour

(

)

const [inline]

bool CzUIBase::getEnableSpring

(

)

const [inline]

CzAnimTimeline* CzUIBase::getHideTimeline

(

)

const [inline]

bool CzUIBase::getNeedsResize

(

)

const [inline]

CzVec2 CzUIBase::getPreviousScrollPos

(

)

const [inline]

bool CzUIBase::getProperty	(	unsigned int	property_name,
		CzXomlProperty &	prop
	)		[virtual]

Gets the named property of the actor.

Returns the named property of the actor. The properties value is returned in a CzXomlProperty which is a structure that contains a union of all possible property types. Note that as CzUIBase is derived from CzActorImage, all CzActorImage properties will also be checked against.

Parameters:

	property_name	Name of the property.
[out]	prop	The property data that.

Returns:

true if it succeeds, false if property does not exist.

Reimplemented from CzActorImage.

Reimplemented in CzUITabBar, CzUIGrid, CzUIListBox, CzUIImageView, CzUISlider, CzUILabel, CzUITextView, CzUIWebView, CzUITab, CzUITextBox, CzUIVideoOverlay, CzUIStackPanel, and CzUIWrapPanel.

CzVec2 CzUIBase::getScrollPos

(

)

const [inline]

CzIRect CzUIBase::getScrollRange

(

)

const [inline]

CzVec2 CzUIBase::getScrollVelocity

(

)

const [inline]

IzBrush* CzUIBase::getSelectedBackgroundBrush

(

)

const [inline]

CzColour CzUIBase::getSelectedBackgroundColour

(

)

const [inline]

eSelectType CzUIBase::getSelectType

(

)

const [inline]

CzAnimTimeline* CzUIBase::getShowTimeline

(

)

const [inline]

eAxis CzUIBase::getSizeToContentAxis

(

)

const [inline]

bool CzUIBase::Init	(	IzBrush *	brush,
		int	width,
		int	height
	)		[virtual]

Initialises this UI actor.

Carries out some basic UI actor initialisation. Also assigns a brush and render size to the actor.

Parameters:

[in]	brush	If non-null, the brush.
	width	The width of the UI actor.
	height	The height of the UI actor.

Returns:

true if it succeeds, false if it fails.

Reimplemented from CzActorImage.

void CzUIBase::InitClass

(

)

[static]

Initialises the class.

Sets up the classes avaiiable properties. Used by the XOML system to find, set amd get class properties.

Reimplemented from CzActorImage.

Reimplemented in CzUITabBar, CzUIGrid, CzUIListBox, CzUIWebView, CzUIImageView, CzUISlider, CzUITextView, CzUILabel, CzUITab, CzUIVideoOverlay, CzUITextBox, CzUIStackPanel, and CzUIWrapPanel.

void CzUIBase::InitPresetAnimations

(

)

[static]

Initialises the preset animations.

Static method that creates a group of preset animations.

bool CzUIBase::isEnabled

(

)

const [inline]

bool CzUIBase::isLayoutDirty

(

)

const [inline]

bool CzUIBase::isSelected

(

)

const [inline]

bool CzUIBase::isToggledOn

(

)

const [inline]

int CzUIBase::LoadFromXoml	(	IzXomlResource *	parent,
		bool	load_children,
		CzXmlNode *	node
	)		[virtual]

Creates an instance of this class from XML.

LoadFromXoml is the main method used by all classes that can be instantiated from XOML mark-up. This method creates an instance of this class from the supplied XML node structure specified by node. if parent is not NULL then the created instance will utilise the supplied parent to determine where it should live within the app. For example, if the parent is a scene then the actor will be placed in that scene. if the parent is another actor then this actor will be placed into the scene of the supplied actor and linked as a child to the parent actor. If load_chlldren is true then any child nodes contained within the actor will also be loaded. Note that as CzUIBase is derived from CzActorImage, CzActorImage::LoadFromXoml() will also be called to load CzActor specific properties.

Parameters:

[in]	parent	If non-null, the parent.
	load_children	true to load child nodes.
[in]	node	If non-null, the XOML markup node that defines this object

Returns:

negative value for error. if 0 then processing of further XOML will stop.

Reimplemented from CzActorImage.

Reimplemented in CzUITabBar, CzUIGrid, CzUIListBox, CzUITabs, CzUIWebView, CzUIImageView, CzUISlider, CzUITextView, CzUILabel, CzUITab, CzUITextBox, CzUIVideoOverlay, CzUIStackPanel, CzUIWrapPanel, and CzUICanvas.

void CzUIBase::NotifyBackKey

(

)

[virtual]

Handles the back key press evente.

void CzUIBase::NotifyBeginTouch	(	int	index,
		int	x,
		int	y,
		bool	allow_bubble
	)		[virtual]

OnBeginTouch event handler.

The OnBeginTouch event handler is called whenever the user begins to touch the actor. Actors can process up to 5 simultaneous touch events OnBeginTouch to OnBeginTouch5. if event bubbling is enabled then the event will also be passed up to the parent.

This version of this method enables actors to utilise a selected state

Parameters:

index	Index of the touch.
x	The touched x coordinate.
y	The touched y coordinate.
allow_bubble	true to allow event bubbling, false to deny event bubbling.

Reimplemented from CzActor.

Reimplemented in CzUIImageView, CzUITextView, and CzUISlider.

void CzUIBase::NotifyEndTouch	(	int	index,
		int	x,
		int	y,
		bool	allow_bubble
	)		[virtual]

OnEndTouch event handler.

The OnEndTouch event handler is called whenever the user stops touching the actor. This can occur for a number fo reasons including:

• if the user lifts their finger off the actor
• If the user moves their finger too from the actor (loses focus)
• if the user scrolls the container (list boc for example)
• The scene is switched

Actors can process up to 5 simultaneous touch events OnEndTouch to OnEndTouch5. if event bubbling is enabled then the event will also be passed up to the parent.

This version of this method enables actors to utilise a selected state

Parameters:

index	Index of the touch.
x	The touched x coordinate.
y	The touched y coordinate.
allow_bubble	true to allow event bubbling, false to deny event bubbling.

Reimplemented from CzActor.

Reimplemented in CzUIImageView, CzUITextView, and CzUISlider.

void CzUIBase::NotifyMenuKey

(

)

[virtual]

Handles the menu key press evente.

void CzUIBase::NotifyOrientationChange	(	CzScene::eOrientation	old_orientation,
		CzScene::eOrientation	new_orientation
	)		[virtual]

Handles the orientation change event.

When a screen orientation or size change occurs all actors will receive this event emabling them to modify themselves to take advantage of the new screen orientation / size. the default implementation for CzActorImage updates margin and visual sizes if they are precentage based. It also calls CzActor::NotifyOrientationChange() to update the position.

Parameters:

old_orientation	The old orientation.
new_orientation	The new orientation.

Reimplemented from CzActorImage.

Reimplemented in CzUIGrid, CzUIWebView, CzUISlider, and CzUITab.

void CzUIBase::NotifyParentsResize

(

)

Notifies the parent to resize its layout.

Used when this actor changes in a way that could potentially change the parents layout.

void CzUIBase::NotifyTapped	(	int	index,
		int	x,
		int	y,
		bool	allow_bubble
	)		[virtual]

OnTapped event handler.

The OnTapped event handler is called whenever the actor is tapped on by the user. Actors can process up to 5 simultaneous touch events OnTapped to OnTapped5. if event bubbling is enabled then the event will also be passed up to the parent.

This version of this method enables actors to utilise a selected and toggled state

Parameters:

index	Index of the touch.
x	The touched x coordinate.
y	The touched y coordinate.
allow_bubble	true to allow event bubbling, false to deny event bubbling.

Reimplemented from CzActor.

Reimplemented in CzUITextBox.

void CzUIBase::NotifyToggledOff

(

)

[virtual]

Handles the toggled off event.

Reimplemented in CzUITab.

void CzUIBase::NotifyToggledOn

(

)

[virtual]

Handles the toggled on event.

Reimplemented in CzUITab.

void CzUIBase::ReleaseClass

(

)

[static]

Reimplemented from CzActorImage.

Reimplemented in CzUITabBar, CzUIGrid, CzUIListBox, CzUIWebView, CzUIImageView, CzUISlider, CzUITextView, CzUILabel, CzUITab, CzUIVideoOverlay, CzUITextBox, CzUIStackPanel, and CzUIWrapPanel.

void CzUIBase::ReleasePresetAnimations

(

)

[static]

Initialises the preset animations.

Static method that detroys a group of preset animations.

void CzUIBase::resetColourOffset

(

)

[inline]

void CzUIBase::ResizeToContent

(

)

[virtual]

Resizes the actor to fit its content.

Recalculates docking and dirties the layout. Used mainly by layout actors to resize themselves to fit their new content. This method is usually overridden by a derived class in order to calculate the new size based on the containers children. See CzUIStackPanel::ResizeToContent() for a simple example.

Reimplemented in CzUIStackPanel.

bool CzUIBase::ScrollRangeCheck

(

)

[protected]

Prevents scroll position from giong out of bounds.

Checks to see if scroll position has gone out of the scroll range. If so then it is snapped back into place. If spring is enabled then the scroller will spring back into place instead of snapping back into place.

Returns:

true if the scroll position was changed, false if not.

void CzUIBase::setBackgroundBrush

(

IzBrush *

brush

)

Sets background brush of the actor.

The background brush is the normal background that will be displayed when the actor is not selected or disabled.

Parameters:

[in]

brush

If non-null, the brush.

void CzUIBase::setBackgroundColour

(

const CzColour &

colour

)

Sets background colour of the actor.

The background colour is the normal background colour that will be displayed when the actor is not selected or disabled. Note that the background colour will be used to tint the background brush.

Parameters:

colour

The colour.

void CzUIBase::setClippingMargin	(	int	x,
		int	y,
		int	w,
		int	h
	)		[inline]

void CzUIBase::setColourOffset

(

const CzIRect &

offset

)

[inline]

void CzUIBase::setDisabledBackgroundBrush

(

IzBrush *

brush

)

Sets disabled background brush of the actor.

The disabled background brush is the background that will be displayed when the actor is disabled.

Parameters:

[in]

brush

If non-null, the brush.

void CzUIBase::setDisabledBackgroundColour

(

const CzColour &

colour

)

Sets disabled background colour of the actor.

The disabled background colour is the background colour that will be displayed when the actor is disabled. Note that the background colour will be used to tint the disabled background brush.

Parameters:

colour

The colour.

void CzUIBase::setEnabled

(

bool

enabled

)

[virtual]

Enables or disables the actor.

When the actor is in a disabled state it cannot be selected and it will not receive touch input.

setEnabled() is also used to set the correct current brush and colour by calling with the currently Enabled state.

Parameters:

enabled

true to enable, false to disable.

Reimplemented in CzUILabel.

void CzUIBase::setEnableSpring

(

bool

enable

)

[inline]

void CzUIBase::setHideTimeline

(

CzAnimTimeline *

timeline

)

Sets hide timeline deleting any previously assigned none managed hide timeline.

Parameters:

[in]

timeline

If non-null, the timeline.

void CzUIBase::setHideTimeline

(

const char *

timeline_name

)

Sets hide timeline to the named timeline.

Note that the timeline name can also include one of the preset timelines that are defined by PresetAnimations

Parameters:

timeline_name

Name of the timeline.

void CzUIBase::setLayoutDirty

(

bool

dirty

)

Sets layout as dirty.

Settinge the layout dirty focres contained actors to recalculate their layouts

Parameters:

dirty

true to dirty.

void CzUIBase::setNeedsResize

(

bool

resize

)

bool CzUIBase::setProperty	(	unsigned int	property_name,
		const CzXomlProperty &	data,
		bool	delta
	)		[virtual]

Sets the named property of the actor.

Sets the named property of this actor. The properties value supplied will be converted. If delta is set to true then the existing value of the property will be added to instead of replaced.

Parameters:

	property_name	Name of the property as a string hash (faster searching).
[in]	data	The property data.
	delta	true if property should be added to instead of replaced.

Returns:

true if it succeeds, false if property does not exist.

Reimplemented from CzActorImage.

Reimplemented in CzUITabBar, CzUIGrid, CzUIListBox, CzUIImageView, CzUISlider, CzUILabel, CzUITextView, CzUIWebView, CzUITab, CzUITextBox, CzUIVideoOverlay, CzUIStackPanel, and CzUIWrapPanel.

bool CzUIBase::setProperty	(	unsigned int	property_name,
		const CzString &	data,
		bool	delta
	)		[virtual]

Sets the named property of the actor.

Sets the named property of this actor. The properties value (data) is supplied as a string and will be converted. If delta is set to true then the existing value of the property will be added to instead of replaced. Note that as CzUIBase is derived from CzActorImage, all CzActorImage properties will also be checked against.

Parameters:

	property_name	Name of the property as a string hash (faster searching).
[in]	data	The property data.
	delta	true to property should be added to instead of replaced.

Returns:

true if it succeeds, false if property does not exist.

Reimplemented from CzActorImage.

Reimplemented in CzUITabBar, CzUIGrid, CzUIListBox, CzUIImageView, CzUISlider, CzUILabel, CzUITextView, CzUIWebView, CzUITab, CzUITextBox, CzUIVideoOverlay, CzUIStackPanel, and CzUIWrapPanel.

void CzUIBase::setScrollPos	(	float	x,
		float	y
	)

Sets scroll position.

Sets the scroll position of the content within the actor. UI actors can scroll their content around, for example, when a grids data is larger than the available space assigned to the grid then scrolling can be used to enable the user to pan / scroll around the content.

Parameters:

x	The x coordinate.
y	The y coordinate.

void CzUIBase::setScrollRange	(	int	x,
		int	y,
		int	w,
		int	h
	)		[inline]

void CzUIBase::setScrollVelocity	(	float	x,
		float	y
	)		[inline]

void CzUIBase::setSelected	(	bool	selected,
		bool	force_select = false
	)

Sets actors selected state.

Parameters:

selected	true if selected.
force_select	true to force select.

void CzUIBase::setSelectedBackgroundBrush

(

IzBrush *

brush

)

Sets selected background brush of the actor.

The selected background brush is the background that will be displayed when the actor is selected.

Parameters:

[in]

brush

If non-null, the brush.

void CzUIBase::setSelectedBackgroundColour

(

const CzColour &

colour

)

Sets selected background colour of the actor.

The selected background colour is the background colour that will be displayed when the actor is selected. Note that the background colour will be used to tint the selected background brush.

Parameters:

colour

The colour.

void CzUIBase::setSelectType

(

eSelectType

type

)

[inline]

void CzUIBase::setShowTimeline

(

CzAnimTimeline *

timeline

)

Sets show timeline deleting any previously assigned none managed show timeline.

Sets show timeline to the named timeline.

Parameters:

[in]

timeline

If non-null, the timeline.

Note that the timeline name can also include one of the preset timelines that are defined by PresetAnimations

Parameters:

[in]

timeline

If non-null, the timeline.

void CzUIBase::setShowTimeline

(

const char *

timeline_name

)

void CzUIBase::setSizeToContentAxis

(

eAxis

axis

)

[inline]

void CzUIBase::setToggledOn

(

bool

toggled_on

)

Sets actores toggled state.

If the toggle state changes then the OnToggledOn or OnToggledOff events will be raised

Parameters:

toggled_on

true to toggle on, false to toggle off

void CzUIBase::setVisible	(	bool	visible,
		bool	force_set = false
	)		[virtual]

Makes an actor visible.

Actors can be made visible / invisible by setting their visibility. An invisible actor will not be displayed but will still be processed if it is active.

CzUIBase augments the original CzActor::setVisible() method by adding support for starting and stopping show and hide timelines. Show and hide timelines are timelines that can if assigned to an actor will automatically call those timelines each time the actor is made visible or hidden. Any UI actor can be assigned show and hide timelines, for example:

XOML Example:

<Label Font="serif" Background="Button1Brush" Text="Im a label" ShowTimeline="show_timeline" HideTimeline="hide_timeline" />

Parameters:

visible	true to show, false to hide.
force_set	unused at this time

Reimplemented from CzActor.

bool CzUIBase::Update

(

float

dt

)

[virtual]

Updates this actors logic.

Updates the UI actors logic, including:

• Processing event actions
• Processing any attached modifiers
• Updating dragging state
• Updating physics
• Updating the attached timeline
• Updating any show / hide timelines
• Updating the scroller
• Checking for an updating layout if dirty

This method should be overriden by derived actors to provide the UI actor specific logic.

Note that dt is used to scale actor internals that rely on time. This value enables the actor run in an environment where time (the frame rate of the device) can vary allowing animation to keep up without slowing down or speeding up when the frame rate varies.

Note that if an actor returns false then it will automatically be removed from the scene.

Parameters:

dt	The number of seconds since the app was last updated

Returns:

true if it succeeds, false if it fails.

Reimplemented from CzActor.

Reimplemented in CzUITabBar, CzUIGrid, CzUIListBox, CzUIImageView, CzUITextView, CzUILabel, CzUISlider, CzUIVideoOverlay, CzUIWrapPanel, and CzUICanvas.

bool CzUIBase::UpdateBinding	(	unsigned int	property_name,
		CzXomlVariable *	var
	)		[protected, virtual]

Updates an actor property from the supplied XOML variable.

Updates a single property from the value of the bound XOML variable. Note that as CzUIBase is derived from CzActorImage, all CzActorImage properties will also be checked against.

Parameters:

	property_name	Name of the property.
[in,out]	var	If non-null, the variable.

Returns:

true if it succeeds, false if property does not exist.

Reimplemented from CzActorImage.

Reimplemented in CzUITabBar, CzUIGrid, CzUIListBox, CzUIImageView, CzUITextView, CzUISlider, CzUILabel, CzUIWebView, CzUITab, CzUITextBox, CzUIVideoOverlay, CzUIStackPanel, and CzUIWrapPanel.

bool CzUIBase::UpdateFromAnimation

(

CzAnimInstance *

animation

)

[virtual]

Updates actor property from supplied animation.

Updates the actors property that is specified by the supplied animation. When a timeline animation targets the property of an actor this method will be called by the animation to move the animations frame data into its target property. Note that as CzUIBase is derived from CzActorImage, all CzActorImage properties will also be checked against.

Parameters:

[in]

animation

If non-null, the animation.

Returns:

true if it succeeds, false if property does not exist.

Reimplemented from CzActorImage.

Reimplemented in CzUITabBar, CzUIGrid, CzUIListBox, CzUIWebView, CzUIImageView, CzUISlider, CzUITextView, CzUILabel, CzUITab, CzUITextBox, CzUIStackPanel, CzUIVideoOverlay, and CzUIWrapPanel.

bool CzUIBase::UpdateLayout

(

)

[protected, virtual]

Updates the actors layout.

Recalculates the actors layout. Used mainly by container actors to modify the layout of their child content. This method is usually overridden by a derived class in order to update the layout of its children.. See CzUIStackPanel::UpdateLayout() for a simple example.

Returns:

true if it succeeds, false if it fails.

Reimplemented in CzUITabBar, CzUIGrid, CzUIListBox, CzUIStackPanel, CzUIWrapPanel, and CzUICanvas.

void CzUIBase::UpdatePresetAnimations

(

)

[static]

Updates the preset animations.

Static method that updates a group of preset animations.

---

Member Data Documentation

IzBrush* CzUIBase::BackgroundBrush [protected]

Default none selected brush.

CzColour CzUIBase::BackgroundColour [protected]

Default none selected colour.

CzIRect CzUIBase::ClippingMargin [protected]

Margin that is used to adjust the clipping rectangle.

CzIRect CzUIBase::ColourOffset [protected]

Amount to offset the current colour of the actor.

IzBrush* CzUIBase::DisabledBackgroundBrush [protected]

Disabled brush.

CzColour CzUIBase::DisabledBackgroundColour [protected]

Disabled colour.

bool CzUIBase::Enabled [protected]

Enabled state.

bool CzUIBase::EnableSpring [protected]

Enables drag release spring.

CzAnimTimeline* CzUIBase::HideTimeline [protected]

Timeline to play when this UI element is made invisible.

CzVec2 CzUIBase::InitialScrollPos [protected]

bool CzUIBase::LayoutDirty [protected]

When true the layout of this element and any children is re-calculated.

bool CzUIBase::NeedsResize [protected]

Set to true when child actors sizes have changed.

CzIRect CzUIBase::OriginalClippingMargin [protected]

Original margin that is used to adjust the clipping rectangle.

CzList< CzAnim * > CzUIBase::PresetAnimations [static]

CzVec2 CzUIBase::PreviousScrollPos [protected]

Previous scroll position.

bool CzUIBase::PrevSelected [protected]

Previous Selected status.

CzVec2 CzUIBase::ScrollPos [protected]

Current scroll position.

CzIRect CzUIBase::ScrollRange [protected]

X and Y ranges of scroll.

CzVec2 CzUIBase::ScrollVelocity [protected]

Current scroll velocity.

bool CzUIBase::Selected [protected]

Selected status.

IzBrush* CzUIBase::SelectedBackgroundBrush [protected]

Selected brush.

CzColour CzUIBase::SelectedBackgroundColour [protected]

Selected colour.

eSelectType CzUIBase::SelectType [protected]

Selection method used for this UI element.

CzAnimTimeline* CzUIBase::ShowTimeline [protected]

Timeline to play when this UI element is made visible.

eAxis CzUIBase::SizeToContentAxis [protected]

Determines if and how an element should size to its content.

bool CzUIBase::Tapped [protected]

bool CzUIBase::ToggledOn [protected]

ToggledOn state.

CzXomlClassDef * CzUIBase::UIBaseClassDef = NULL [static, protected]

---

The documentation for this class was generated from the following files:

• CzUIBase.h
• CzUIBase.cpp
