CzActorImage Class Reference

An image based game actor that can display a bitmap or portion of a bitmap. More...

#include <CzActorImage.h>

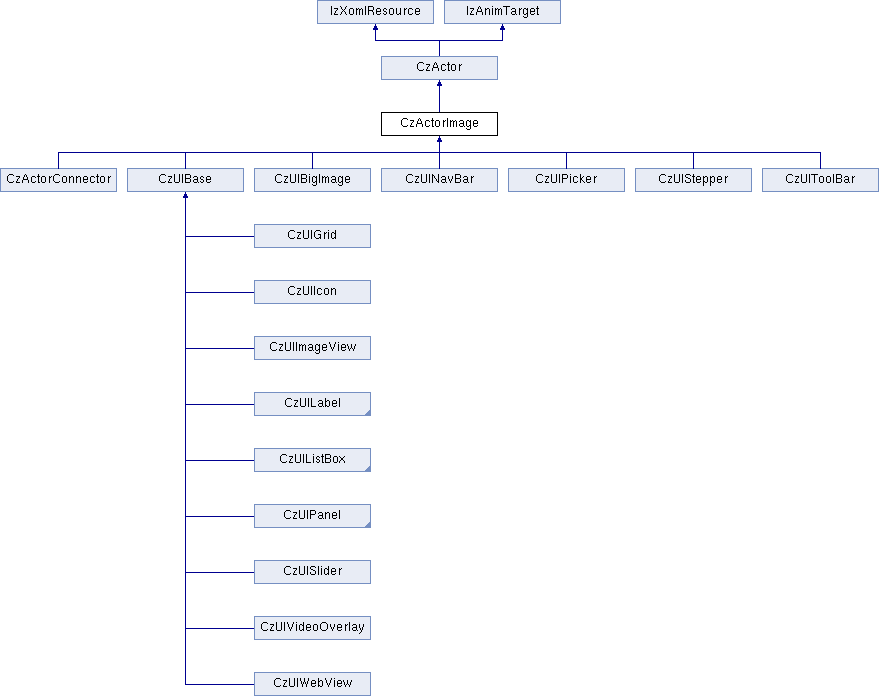

Inheritance diagram for CzActorImage:

List of all members.

Public Member Functions
bool	setProperty (unsigned int property_name, const CzXomlProperty &data, bool delta)
	Sets the named property of the ActorImage.
bool	setProperty (unsigned int property_name, const CzString &data, bool delta)
	Sets the named property of the actor.
bool	getProperty (unsigned int property_name, CzXomlProperty &prop)
	Gets the named property of the actor.
	CzActorImage ()
virtual	~CzActorImage ()
virtual bool	Init (IzBrush *brush, int width, int height)
	Initialise the bitmap based actor from a brush.
virtual bool	Init (CzImage *image, int width, int height)
virtual bool	Init (CzImage *image, CzIRect *src_rect)
	Initialise the bitmap based actor from an image and a source rectangle.
virtual bool	Init (CzImage *image, int x, int y, int w, int h)
	Initialise the bitmap based actor from an image and a source rectangle.
bool	UpdateVisual ()
	Updates the actors visual.
void	SetSrcDest (int x, int y, int w, int h)
	Sets bitmap source rectangle and visual size.
void	SetSrcRect (int x, int y, int w, int h)
	Sets bitmap source rectangle.
void	SetDestSize (int w, int h)
	Sets actors visual size.
virtual void	SetImage (CzImage *image)
	Sets the image associated with the actors visual.
virtual void	SetFromBrush (IzBrush *brush, bool resize=true)
	Sets the actirs brush.
CzGeometry *	getGeometry ()
void	setGeometry (CzGeometry *geom)
	Assigns a new geometry to the actor.
virtual void	NotifyOrientationChange (CzScene::eOrientation old_orientation, CzScene::eOrientation new_orientation)
	Handles the orientation change event.
int	LoadFromXoml (IzXomlResource *parent, bool load_children, CzXmlNode *node)
	Creates an instance of this class from XML.
bool	UpdateFromAnimation (CzAnimInstance *animation)
	Updates actor property from supplied animation.
Static Public Member Functions
static void	InitClass ()
	Initialises the class.
static void	ReleaseClass ()
static bool	_setSize (IzXomlResource *target, const CzXomlProperty &prop, bool add)
static CzXomlProperty	_getSize (IzXomlResource *target)
static bool	_setSrcRect (IzXomlResource *target, const CzXomlProperty &prop, bool add)
static CzXomlProperty	_getSrcRect (IzXomlResource *target)
static bool	_setSrcTiling (IzXomlResource *target, const CzXomlProperty &prop, bool add)
static CzXomlProperty	_getSrcTiling (IzXomlResource *target)
static bool	_setSrcTiled (IzXomlResource *target, const CzXomlProperty &prop, bool add)
static CzXomlProperty	_getSrcTiled (IzXomlResource *target)
static bool	_setImage (IzXomlResource *target, const CzXomlProperty &prop, bool add)
static CzXomlProperty	_getImage (IzXomlResource *target)
static bool	_setBrush (IzXomlResource *target, const CzXomlProperty &prop, bool add)
static CzXomlProperty	_getBrush (IzXomlResource *target)
static bool	_setFlipX (IzXomlResource *target, const CzXomlProperty &prop, bool add)
static CzXomlProperty	_getFlipX (IzXomlResource *target)
static bool	_setFlipY (IzXomlResource *target, const CzXomlProperty &prop, bool add)
static CzXomlProperty	_getFlipY (IzXomlResource *target)
static bool	_setSkew (IzXomlResource *target, const CzXomlProperty &prop, bool add)
static CzXomlProperty	_getSkew (IzXomlResource *target)
static bool	_setBeforeChildren (IzXomlResource *target, const CzXomlProperty &prop, bool add)
static CzXomlProperty	_getBeforeChildren (IzXomlResource *target)
static bool	_setFilter (IzXomlResource *target, const CzXomlProperty &prop, bool add)
static CzXomlProperty	_getFilter (IzXomlResource *target)
static bool	_setAspectLock (IzXomlResource *target, const CzXomlProperty &prop, bool add)
static CzXomlProperty	_getAspectLock (IzXomlResource *target)
static bool	_setAlphaMode (IzXomlResource *target, const CzXomlProperty &prop, bool add)
static CzXomlProperty	_getAlphaMode (IzXomlResource *target)
static bool	_setGeometry (IzXomlResource *target, const CzXomlProperty &prop, bool add)
static CzXomlProperty	_getGeometry (IzXomlResource *target)
Protected Member Functions
bool	InitWithImage (CzImage *image, int width, int height)
	Initialise the bitmap based actor from a brush.
bool	InitWithBrush (IzBrush *brush, int width, int height)
	Initialise the bitmap based actor from a brush.
bool	UpdateBinding (unsigned int property_name, CzXomlVariable *var)
	Updates an actor property from the supplied XOML variable.
void	UpdateAspect ()
	Updates the aspect of this actor.
Protected Attributes
CzGeometry *	Geometry
	Visual geometry.
CzIVec2	OldSrcSize
Static Protected Attributes
static CzXomlClassDef *	ActorImageClassDef = NULL

---

Detailed Description

An image based game actor that can display a bitmap or portion of a bitmap.

Image actors or actors derived from them form the backbone of most of the games and apps developed with XOML. An image actor is an actor that represents itself on screen using an image or portion of an image. All of the user interface actors are derived from an image actor. Image actors have the following specific properties:

• Brush (brush) - Specifies a brush that is used to define the image and source rectangle
• Image (image) - The image that is to be used as the actors visual (deprecated, use brushes instead, with exception to particle actors)
• Size (x, y) - The world size of the actor
• SrcRect (x, y, width, height) - The position and source of the source rectangle in the image atlas (x, y, w, h rect). Used for panning the portion of a sprite atlas shown allowing frame based animation. (deprecated, use brushes instead, with exception to particle actors)
• Tiling (x, y) - Sets the UV tiling factor for this actor (default is 1,1), if tiling factor is > 1.0 on either axis then Tiled will automatically be set to true
• Tiled (x, y) - Informs the system that this actor should be rendered with tiling enabled
• FlipX (boolean) - If true then this actor is horizontally flipped
• FlipY (boolean) - If true then this actor is vertically flipped
• Skew (top, bottom, left, right) - Four parameter skewing, which allows the actor to be skewed in four different directions
• BeforeChildren (boolean) - When set to true this actor will be rendered before its children, otherwise it will be rendered afterwards (default is true)
• Filter (boolean) - When set to true this actor will rendered using filtering (default is true)
• AlphaMode (alpha_mode) - Sets the mode to use when mixing transparency (alpha) from the image. AlphaMode can be one of none, half, add, sub and blend (default mode is blend)
• AspectLock (lock_mode) - Locks the aspect ratio of the actor to fit to the screens aspect ratio lock_mode can be one of x, y or none (default is none) Notes:
• Anchor (topleft or centre) - Sets the draw anchor (topleft causes the actor to be displayed relative to its top-left cornr whilst centre will use the actors centre)

An image actor requires an Image or a Brush to be defined Because an image actor inherits from a basic actor, it inherits all of the basic actors properties as well as those properties shown above. Lets take a look at an image actor definition:

XOML Example using brushes:

 <ActorImage Brush=”Brush1” Position="10, 20" Size="-100, -100" />

XOML Example using image and src rectangle:

 <ActorImage Image=”Image1” SrcRect="0, 0, 64, 64" Position="10, 20" Size="-100, -100" />

Note that it is usually much more convenient and better practice to define and use brushes instead of using image and bitmap source ractangles (the area opf the bitmap that will be drawn onto the actor) as they can be re-used and easily modified later.

---

Constructor & Destructor Documentation

CzActorImage::CzActorImage

(

)

[inline]

virtual CzActorImage::~CzActorImage

(

)

[inline, virtual]

---

Member Function Documentation

CzXomlProperty CzActorImage::_getAlphaMode

(

IzXomlResource *

target

)

[static]

CzXomlProperty CzActorImage::_getAspectLock

(

IzXomlResource *

target

)

[static]

CzXomlProperty CzActorImage::_getBeforeChildren

(

IzXomlResource *

target

)

[static]

CzXomlProperty CzActorImage::_getBrush

(

IzXomlResource *

target

)

[static]

CzXomlProperty CzActorImage::_getFilter

(

IzXomlResource *

target

)

[static]

CzXomlProperty CzActorImage::_getFlipX

(

IzXomlResource *

target

)

[static]

CzXomlProperty CzActorImage::_getFlipY

(

IzXomlResource *

target

)

[static]

CzXomlProperty CzActorImage::_getGeometry

(

IzXomlResource *

target

)

[static]

CzXomlProperty CzActorImage::_getImage

(

IzXomlResource *

target

)

[static]

CzXomlProperty CzActorImage::_getSize

(

IzXomlResource *

target

)

[static]

Reimplemented in CzUIBase.

CzXomlProperty CzActorImage::_getSkew

(

IzXomlResource *

target

)

[static]

CzXomlProperty CzActorImage::_getSrcRect

(

IzXomlResource *

target

)

[static]

CzXomlProperty CzActorImage::_getSrcTiled

(

IzXomlResource *

target

)

[static]

CzXomlProperty CzActorImage::_getSrcTiling

(

IzXomlResource *

target

)

[static]

bool CzActorImage::_setAlphaMode	(	IzXomlResource *	target,
		const CzXomlProperty &	prop,
		bool	add
	)		[static]

bool CzActorImage::_setAspectLock	(	IzXomlResource *	target,
		const CzXomlProperty &	prop,
		bool	add
	)		[static]

bool CzActorImage::_setBeforeChildren	(	IzXomlResource *	target,
		const CzXomlProperty &	prop,
		bool	add
	)		[static]

bool CzActorImage::_setBrush	(	IzXomlResource *	target,
		const CzXomlProperty &	prop,
		bool	add
	)		[static]

bool CzActorImage::_setFilter	(	IzXomlResource *	target,
		const CzXomlProperty &	prop,
		bool	add
	)		[static]

bool CzActorImage::_setFlipX	(	IzXomlResource *	target,
		const CzXomlProperty &	prop,
		bool	add
	)		[static]

bool CzActorImage::_setFlipY	(	IzXomlResource *	target,
		const CzXomlProperty &	prop,
		bool	add
	)		[static]

bool CzActorImage::_setGeometry	(	IzXomlResource *	target,
		const CzXomlProperty &	prop,
		bool	add
	)		[static]

bool CzActorImage::_setImage	(	IzXomlResource *	target,
		const CzXomlProperty &	prop,
		bool	add
	)		[static]

bool CzActorImage::_setSize	(	IzXomlResource *	target,
		const CzXomlProperty &	prop,
		bool	add
	)		[static]

Reimplemented in CzUIBase.

bool CzActorImage::_setSkew	(	IzXomlResource *	target,
		const CzXomlProperty &	prop,
		bool	add
	)		[static]

bool CzActorImage::_setSrcRect	(	IzXomlResource *	target,
		const CzXomlProperty &	prop,
		bool	add
	)		[static]

bool CzActorImage::_setSrcTiled	(	IzXomlResource *	target,
		const CzXomlProperty &	prop,
		bool	add
	)		[static]

bool CzActorImage::_setSrcTiling	(	IzXomlResource *	target,
		const CzXomlProperty &	prop,
		bool	add
	)		[static]

CzGeometry* CzActorImage::getGeometry

(

)

[inline]

bool CzActorImage::getProperty	(	unsigned int	property_name,
		CzXomlProperty &	prop
	)		[virtual]

Gets the named property of the actor.

Returns the named property of the actor. The properties value is returned in a CzXomlProperty which is a structure that contains a union of all possible property types. Note that as CzActorImage is derived from CzActor, all CzActor properties will also be checked against.

Parameters:

	property_name	Name of the property.
[out]	prop	The property data that.

Returns:

true if it succeeds, false if property does not exist.

Reimplemented from CzActor.

Reimplemented in CzUITabBar, CzUIBase, CzUIGrid, CzUIListBox, CzActorConnector, CzUIImageView, CzUISlider, CzUILabel, CzUITextView, CzUIWebView, CzUITab, CzUITextBox, CzUIVideoOverlay, CzUIStackPanel, and CzUIWrapPanel.

bool CzActorImage::Init	(	IzBrush *	brush,
		int	width,
		int	height
	)		[virtual]

Initialise the bitmap based actor from a brush.

Initialises the bitmap actor from a brush, width and height. The image and image's source rectangle will be taken from the brush. Note that this method will create a CzBitmapSprite visual and add it to the scenes sprite manager if the brush type is of IzBrush::BT_Image. If the brush type is IzBrush::BT_9Patch then a CzBitmapSprite9 sprite will be created instead.

Parameters:

[in]	brush	If non-null, the brush.
	width	The width.
	height	The height.

Returns:

true if it succeeds, false if it fails.

Reimplemented in CzUIBase.

bool CzActorImage::Init	(	CzImage *	image,
		int	width,
		int	height
	)		[virtual]

bool CzActorImage::Init	(	CzImage *	image,
		CzIRect *	src_rect
	)		[virtual]

Initialise the bitmap based actor from an image and a source rectangle.

Initialises the bitmap actor from an image and a source rectangle. The actors visual size will be calculated from the width and height of the source rectangle. Note that this method will create a CzBitmapSprite visual and add it to the scenes sprite manager.

Parameters:

[in]	image	If non-null, the image.
[in]	src_rect	The width.

Returns:

true if it succeeds, false if it fails.

param height The height.

bool CzActorImage::Init	(	CzImage *	image,
		int	x,
		int	y,
		int	w,
		int	h
	)		[virtual]

Initialise the bitmap based actor from an image and a source rectangle.

Initialises the bitmap actor from an image and a source rectangle. The actors visual size will be calculated from the width and height of the source rectangle. Note that this method will create a CzBitmapSprite visual and add it to the scenes sprite manager.

Parameters:

[in,out]	image	If non-null, the image.
	x	The x coordinate.
	y	The y coordinate.
	w	The width.
	h	The height.

Returns:

true if it succeeds, false if it fails.

void CzActorImage::InitClass

(

)

[static]

Initialises the class.

Sets up the classes avaiiable properties. Used by the XOML system to find, set amd get class properties.

Reimplemented from CzActor.

Reimplemented in CzUIBase, CzUITabBar, CzUIGrid, CzUIListBox, CzUIWebView, CzActorConnector, CzUIImageView, CzUISlider, CzUITextView, CzUILabel, CzUITab, CzUIVideoOverlay, CzUITextBox, CzUIStackPanel, and CzUIWrapPanel.

bool CzActorImage::InitWithBrush	(	IzBrush *	brush,
		int	width,
		int	height
	)		[protected]

Initialise the bitmap based actor from a brush.

Initialises the bitmap actor from a brush, width and height. The image and image's source rectangle will be taken from the brush. Note that this method will create a CzBitmapSprite visual and add it to the scenes sprite manager if the brush type is of IzBrush::BT_Image. If the brush type is IzBrush::BT_9Patch then a CzBitmapSprite9 sprite will be created instead.

Parameters:

[in]	brush	If non-null, the brush.
	width	The width.
	height	The height.

Returns:

true if it succeeds, false if it fails.

bool CzActorImage::InitWithImage	(	CzImage *	image,
		int	width,
		int	height
	)		[protected]

Initialise the bitmap based actor from a brush.

Initialises the bitmap actor from an image, width and height. Note that this method will create a CzBitmapSprite visual and add it to the scenes sprite manager

Parameters:

[in,out]	image	If non-null, the image.
	width	The display width of the actor.
	height	The display height of the actor.

Returns:

true if it succeeds, false if it fails.

int CzActorImage::LoadFromXoml	(	IzXomlResource *	parent,
		bool	load_children,
		CzXmlNode *	node
	)		[virtual]

Creates an instance of this class from XML.

LoadFromXoml is the main method used by all classes that can be instantiated from XOML mark-up. This method creates an instance of this class from the supplied XML node structure specified by node. if parent is not NULL then the created instance will utilise the supplied parent to determine where it should live within the app. For example, if the parent is a scene then the actor will be placed in that scene. if the parent is another actor then this actor will be placed into the scene of the supplied actor and linked as a child to the parent actor. If load_chlldren is true then any child nodes contained within the actor will also be loaded. Note that as CzActorImage is derived from CzActor, CzActor::LoadFromXoml() will also be called to load CzActor specific properties.

Parameters:

[in]	parent	If non-null, the parent.
	load_children	true to load child nodes.
[in]	node	If non-null, the XOML markup node that defines this object

Returns:

negative value for error. if 0 then processing of further XOML will stop.

Reimplemented from CzActor.

Reimplemented in CzUIBase, CzUITabBar, CzUIGrid, CzUIListBox, CzUITabs, CzUIWebView, CzActorConnector, CzUIImageView, CzUISlider, CzUITextView, CzUILabel, CzUITab, CzUITextBox, CzUIVideoOverlay, CzUIStackPanel, CzUIWrapPanel, and CzUICanvas.

void CzActorImage::NotifyOrientationChange	(	CzScene::eOrientation	old_orientation,
		CzScene::eOrientation	new_orientation
	)		[virtual]

Handles the orientation change event.

When a screen orientation or size change occurs all actors will receive this event emabling them to modify themselves to take advantage of the new screen orientation / size. the default implementation for CzActorImage updates margin and visual sizes if they are precentage based. It also calls CzActor::NotifyOrientationChange() to update the position.

Parameters:

old_orientation	The old orientation.
new_orientation	The new orientation.

Reimplemented from CzActor.

Reimplemented in CzUIBase, CzUIGrid, CzUIWebView, CzUISlider, and CzUITab.

void CzActorImage::ReleaseClass

(

)

[static]

Reimplemented from CzActor.

Reimplemented in CzUIBase, CzUITabBar, CzUIGrid, CzUIListBox, CzUIWebView, CzActorConnector, CzUIImageView, CzUISlider, CzUITextView, CzUILabel, CzUITab, CzUIVideoOverlay, CzUITextBox, CzUIStackPanel, and CzUIWrapPanel.

void CzActorImage::SetDestSize	(	int	w,
		int	h
	)

Sets actors visual size.

Sets the actor visual size in scene units.

Parameters:

w	The width in scene units.
h	The height in scene units.

void CzActorImage::SetFromBrush	(	IzBrush *	brush,
		bool	resize = true
	)		[virtual]

Sets the actirs brush.

Sets the actors brush from the supplied brush. If resie is true then the actors visual size will be resized to the size of the new brush.

Parameters:

[in]	brush	If non-null, the brush.
	resize	true to resize.

Reimplemented in CzUILabel.

void CzActorImage::setGeometry

(

CzGeometry *

geom

)

Assigns a new geometry to the actor.

Parameters:

[in]

geom

If non-null, the geometry.

void CzActorImage::SetImage

(

CzImage *


)

[virtual]

Sets the image associated with the actors visual.

Sets the image associated with the actors visual. if no visual is attached to this actor then a CzBitmapSprite is created and attached.

Parameters:

[in]


If non-null, the image.

bool CzActorImage::setProperty	(	unsigned int	property_name,
		const CzXomlProperty &	data,
		bool	delta
	)		[virtual]

Sets the named property of the ActorImage.

Sets the named property of this ActorImage. The properties value supplied will be converted. If delta is set to true then the existing value of the property will be added to instead of replaced.

Parameters:

	property_name	Name of the property as a string hash (faster searching).
[in]	data	The property data.
	delta	true if property should be added to instead of replaced.

Returns:

true if it succeeds, false if property does not exist.

Reimplemented from CzActor.

Reimplemented in CzUITabBar, CzUIBase, CzUIGrid, CzUIListBox, CzActorConnector, CzUIImageView, CzUISlider, CzUILabel, CzUITextView, CzUIWebView, CzUITab, CzUITextBox, CzUIVideoOverlay, CzUIStackPanel, and CzUIWrapPanel.

bool CzActorImage::setProperty	(	unsigned int	property_name,
		const CzString &	data,
		bool	delta
	)		[virtual]

Sets the named property of the actor.

Sets the named property of this actor. The properties value (data) is supplied as a string and will be converted. If delta is set to true then the existing value of the property will be added to instead of replaced. Note that as CzActorImage is derived from CzActor, all CzActor properties will also be checked against.

Parameters:

	property_name	Name of the property as a string hash (faster searching).
[in]	data	The property data.
	delta	true to property should be added to instead of replaced.

Returns:

true if it succeeds, false if property does not exist.

Sets the named property of this actor. The properties value (data) is supplied as a string and will be converted. If delta is set to true then the existing value of the property will be added to instead of replaced. Note that as CzActorText is derived from CzActor, all CzActor properties will also be checked against.

Parameters:

	property_name	Name of the property as a string hash (faster searching).
[in]	data	The property data.
	delta	true to property should be added to instead of replaced.

Returns:

true if it succeeds, false if property does not exist.

Reimplemented from CzActor.

Reimplemented in CzUITabBar, CzUIBase, CzUIGrid, CzUIListBox, CzActorConnector, CzUIImageView, CzUISlider, CzUILabel, CzUITextView, CzUIWebView, CzUITab, CzUITextBox, CzUIVideoOverlay, CzUIStackPanel, and CzUIWrapPanel.

void CzActorImage::SetSrcDest	(	int	x,
		int	y,
		int	w,
		int	h
	)

Sets bitmap source rectangle and visual size.

Changes the source rectangle of the visual and changes its size to w, h.

Parameters:

x	The x coordinate.
y	The y coordinate.
w	The width.
h	The height.

void CzActorImage::SetSrcRect	(	int	x,
		int	y,
		int	w,
		int	h
	)

Sets bitmap source rectangle.

Changes the source rectangle of the visual.

Parameters:

x	The x coordinate.
y	The y coordinate.
w	The width.
h	The height.

void CzActorImage::UpdateAspect

(

)

[protected]

Updates the aspect of this actor.

if this actor has been marked so that it locks its aspect ratio to the x or y axix then this utility method will calculate the final size of the actor based on the aspect ratio of the bitmap that is attached to this actors visual. Note that this method is automatically called by the actors Update() method.

bool CzActorImage::UpdateBinding	(	unsigned int	property_name,
		CzXomlVariable *	var
	)		[protected, virtual]

Updates an actor property from the supplied XOML variable.

Updates a single property from the value of the bound XOML variable. Note that as CzActorImage is derived from CzActor, all CzActor properties will also be checked against.

Parameters:

	property_name	Name of the property.
[in,out]	var	If non-null, the variable.

Returns:

true if it succeeds, false if property does not exist.

Reimplemented from CzActor.

Reimplemented in CzUIBase, CzUITabBar, CzUIGrid, CzUIListBox, CzActorConnector, CzUIImageView, CzUITextView, CzUISlider, CzUILabel, CzUIWebView, CzUITab, CzUITextBox, CzUIVideoOverlay, CzUIStackPanel, and CzUIWrapPanel.

bool CzActorImage::UpdateFromAnimation

(

CzAnimInstance *

animation

)

[virtual]

Updates actor property from supplied animation.

Updates the actors property that is specified by the supplied animation. When a timeline animation targets the property of an actor this method will be called by the animation to move the animations frame data into its target property. Note that as CzActorImage is derived from CzActor, all CzActor properties will also be checked against.

Parameters:

[in]

animation

If non-null, the animation.

Returns:

true if it succeeds, false if property does not exist.

Reimplemented from CzActor.

Reimplemented in CzUIBase, CzUITabBar, CzUIGrid, CzUIListBox, CzUIWebView, CzActorConnector, CzUIImageView, CzUISlider, CzUITextView, CzUILabel, CzUITab, CzUITextBox, CzUIStackPanel, CzUIVideoOverlay, and CzUIWrapPanel.

bool CzActorImage::UpdateVisual

(

)

[virtual]

Updates the actors visual.

Transfers visual data from the actor to the visual such as position, angle, scale, colour etc..

Returns:

true if it succeeds, false if it fails.

Reimplemented from CzActor.

Reimplemented in CzUIWebView, CzUIImageView, and CzUITextView.

---

Member Data Documentation

CzXomlClassDef * CzActorImage::ActorImageClassDef = NULL [static, protected]

CzGeometry* CzActorImage::Geometry [protected]

Visual geometry.

CzIVec2 CzActorImage::OldSrcSize [protected]

---

The documentation for this class was generated from the following files:

• CzActorImage.h
• CzActorImage.cpp
• CzActorText.cpp
• CzUIBase.cpp
• CzUIGrid.cpp
